HD1

[EnoSat]

After a long time, I updated the CST HD-1 PVR. In debug mode, I noticed:
Nach langer Zeit habe ich meinen CST HD-1 PVR aktualisiert. Im Debug-Modus ist mir Folgendes aufgefallen:

Code: Alles auswählen

[frontend.cpp:getSignalStrength:774] ioctl(fd, FE_GET_PROPERTY, &props): Operation not permitted
getSignalStrength: DTV_STAT_SIGNAL_STRENGTH failed
[frontend.cpp:getSignalNoiseRatio:805] ioctl(fd, FE_GET_PROPERTY, &props): Operation not permitted
getSignalNoiseRatio: DTV_STAT_CNR failed

The receiver appears to be functioning correctly. What does this error affect?
Der Empfänger scheint ordnungsgemäß zu funktionieren. Welche Auswirkungen hat dieser Fehler?

[BPanther]

Steht doch im Grunde schon da, was dann nicht funktioniert, nämlich SIG und SNR Anzeige.
As you can read, no SIG and SNR will be shown.

[EnoSat]

I think there was no problem in the old versions, what has changed?
Ich glaube, in den alten Versionen gab es kein Problem, was hat sich geändert?

[mirz]

I think it's just a hint and not really an issue.
I can see those information in my log files too, whenever the box is going to or wakes up from standby.
It just says that the tuners are not working in these timeframes.

[vanhofen]

It will be fixed soon. In tuxbox-neutrino is a commit which supresses these cosole-outputs. I have to pick it.

[EnoSat]

Right after installation, rootfs is almost full. Is there any way to remove something?
Unmittelbar nach der Installation ist rootfs fast voll. Gibt es eine Möglichkeit, etwas zu löschen?

[EnoSat]

One more thing after installation:
Noch eine Sache nach der Installation:

[EnoSat]

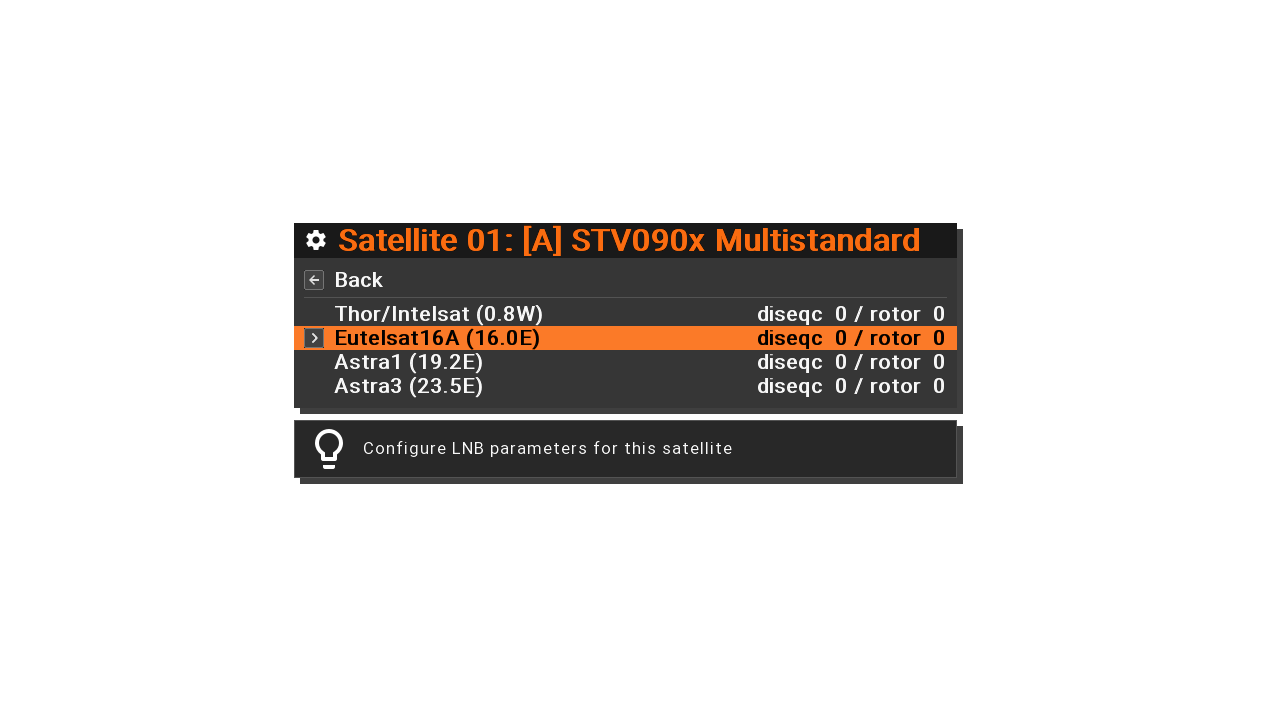

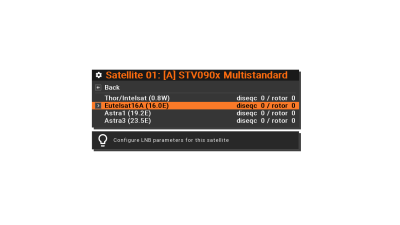

The frontend.conf file for Diseqc 8x1 is set up like this:
Die frontend.conf-Datei für Diseqc 8x1 ist wie folgt aufgebaut:
Port1-23E
Port2-19E
Port3-16E
Port7-1W

Code: Alles auswählen

fe0_diseqcRepeats=2
fe0_diseqcType=4
fe0_diseqc_order=0
fe0_force_mode=0
fe0_highVoltage=1
fe0_lastSatellitePosition=160
fe0_master=0
fe0_mode=1
fe0_position_-8=-8,6,-1,6,0,0,9750,10600,11700,0,0,1
fe0_position_160=160,3,-1,3,0,0,9750,10600,11700,0,0,1
fe0_position_192=192,2,-1,2,0,0,9750,10600,11700,0,0,1
fe0_position_235=235,1,-1,1,0,0,9750,10600,11700,0,0,1
fe0_powered=1
fe0_rotor_swap=0
fe0_satellites=-8,160,192,235
fe0_uni_freq=0
fe0_uni_pin=0
fe0_uni_scr=0
fe0_use_usals=0

When scaning, it finds all available programs, but when switching to a found channel from 16E, the input switches to port0 (36E - not set, but verified for LOOP OUT).
Bei der Suche werden alle verfügbaren Programme gefunden, aber beim Umschalten auf einen gefundenen Kanal von 16E schaltet der Eingang auf Port 0 (36E - nicht gesetzt, aber auf LOOP OUT überprüft).
Any idea why it's doing this ?
Hat jemand eine Ahnung, warum das passiert ?

[Don de Deckelwech]

Hi,
two things:
- Neutrino counts starting with Zero internally, but starts counting in the Menues with One, because we are humans and stupid. So you have to keep that in mind.

- so you have set up the "ports" 1,2,3,7 (really seven, or rather four?) to the mentioned sats:

Port1-23E
Port2-19E
Port3-16E
Port7-1W

But in the frontend.conf your Tuner ist set to "-8,160,192,235" (8W,16E,19.2E,23.5E), do you see the error?

Bye,
DdD.

edit1: regarding your post before, in the HD1-Images is Python not included, because that would be to big to fit in the flash.

edit2 (much later): my edit1 could have been wrong, it seems it could maybe a problem with yt-dlp.

[EnoSat]

Thanks for your response.

LNB1 (Port0) - 36E
LNB2 (Port1) - 23E
LNB3 (Port2) - 19E
LNB4 (Port3) - 16E
LNB5 (Port4) - 13E (No LNB yet)
LNB6 (Port5) - 5E (No LNB yet)
LNB7 (Port6) - 1W
LNB8 (Port7) - 52E (No LNB yet)

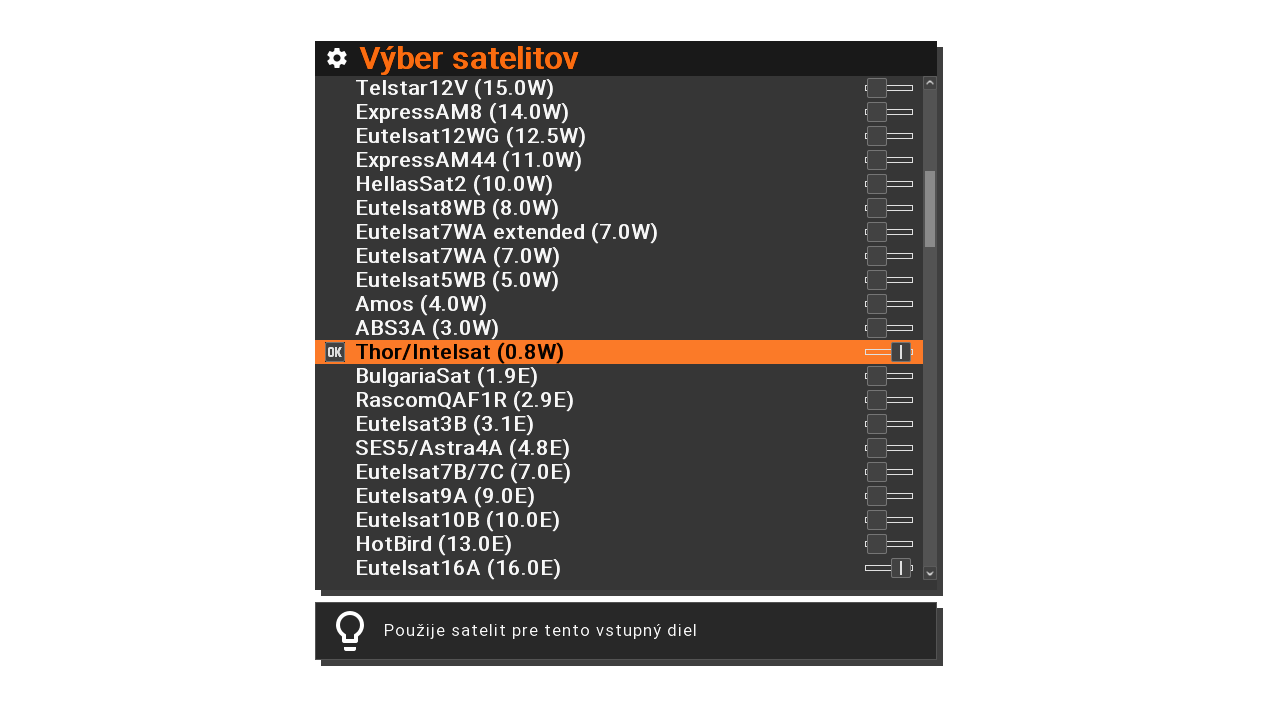

As for -8, the system sets this itself after selection from the menu.

Code: Alles auswählen

fe0_diseqcRepeats=0
fe0_diseqcType=4
fe0_diseqc_order=0
fe0_force_mode=0
fe0_highVoltage=0
fe0_lastSatellitePosition=0
fe0_master=0
fe0_mode=1
fe0_motorRotationSpeed=18
fe0_position_-8=-8,-1,-1,6,0,0,9750,10600,11700,0,0,1
fe0_position_160=160,-1,-1,3,0,0,9750,10600,11700,0,0,1
fe0_position_192=192,-1,-1,2,0,0,9750,10600,11700,0,0,1
fe0_position_235=235,-1,-1,1,0,0,9750,10600,11700,0,0,1
fe0_powered=0
fe0_rotor_swap=0
fe0_satellites=-8,160,192,235
fe0_uni_freq=0
fe0_uni_pin=0
fe0_uni_scr=0
fe0_use_usals=0

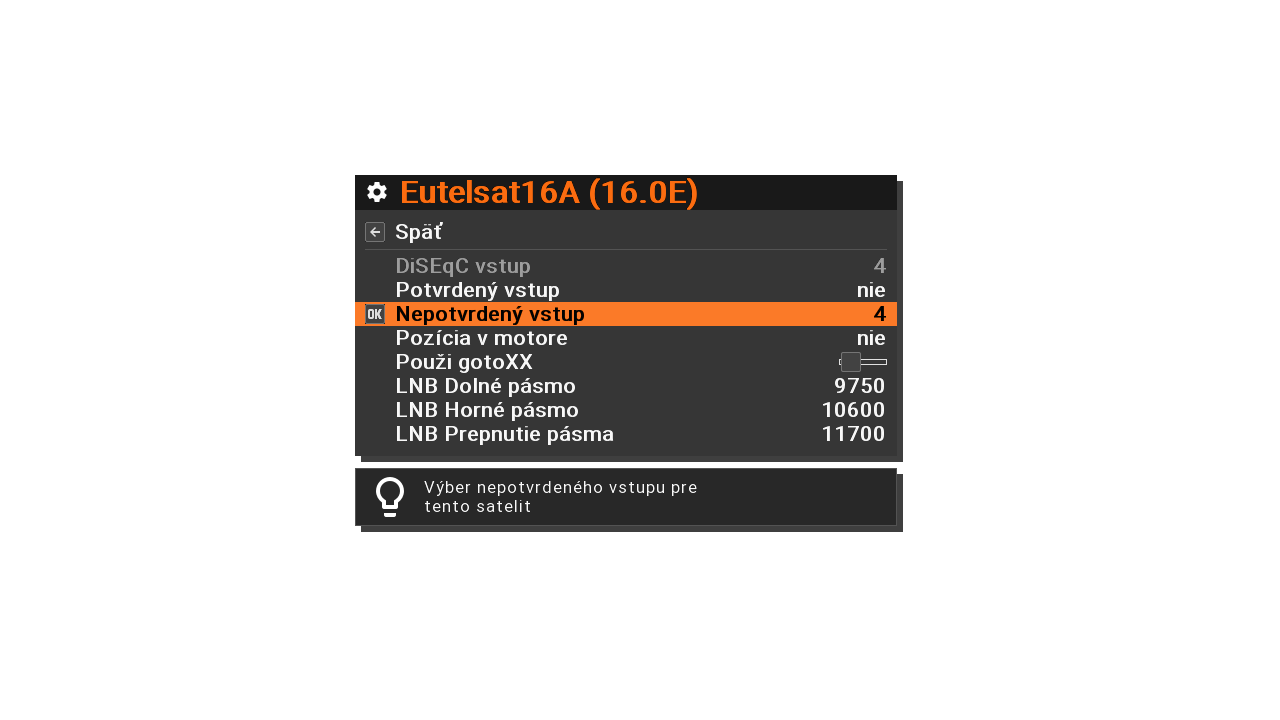

I also tried manual editing to:

Code: Alles auswählen

fe0_position_160=160,3,-1,3,0,0,9750,10600,11700,0,0,1

but the result seems to be the same, too with Advanced
If I understood it correctly:

Code: Alles auswählen

160 - sat position
-1 - mini diseqc/diseqc1.0/unicable (0-16 or 0-1)
-1 - diseqc1.1 commited (0-16)
3 - diseqc1.1 uncommited (0-16)
0 - rotor position (0-64)
0 - ???
9750 - LNB LOF low
10600 - LNB LOF high
11700 - LNB LOF switch
0 - ???
0 - ???
1 - activated position/sat
